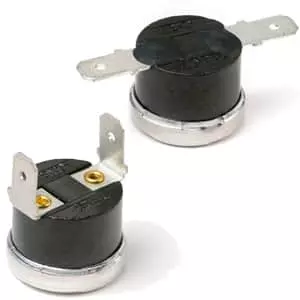

1/2" Snap Action Bimetal Disc Thermostat: HB-2

Temperature ControlSnap Action Temperature Control: The HB-2 series of 1/2” bimetal temperature controls from Calco Electric offers proven reliability in a compact, cost-effective design.

The snap action of the bimetal disc provides excellent contact separation resulting in excellent life cycle at electrical loads of 15 amps at 120 volts and 7.5 amps@250 volts, and 10 amps at 240 VAC for 100,000 cycles.  Calco Electric supplies the best and highest quality 1/2" discs available.  This is an automatic reset thermostat.

The HB-2 has a wide variety of applications to be used as a safety limit(hi-limit) or a regulation controller.

  • Small appliances
  • White goods
  • Electric heaters
  • Automotive seat heaters
  • Water heaters

download pdf



HB-2 1/2" Disc Thermostat PDF
